Doors

Door Options

We offer several styles of doors for use with 10 Series®, ESQ®, FP1, and FP2. Some are surface mounted and cover the panel opening, meaning they mount to the front face of the frame adding to the overall depth. Some are flush mounted and fill the panel opening, meaning they mount to the mounting rails and end up flush with the face of the frame. Mounting hardware is included, if not configured prior to shipment. Not all door styles work with all products.


Doors for 10 Series® and ESQ®

Formed Steel
Formed steel doors are surface mounted doors meaning they cover the panel opening of the frame providing the space necessary to mount equipment and accessories behind the door panel. Available in four styles, the doors feature a low-profile lockable single point latch handle and stylized black hinges that allow for 120° of rotation. When mounted, these doors add 1.00” to the overall depth. The frame will be drilled to accept surface doors, therefore door mounting location must be supplied at the time of order placement.

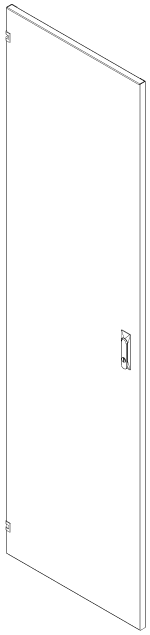

Solid

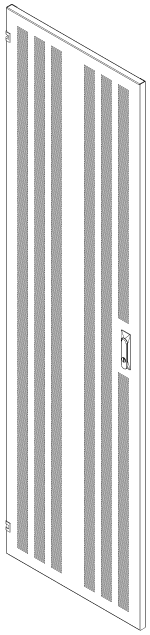

Vented

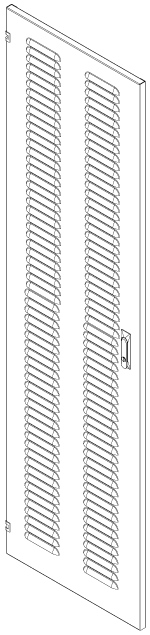

Louvered

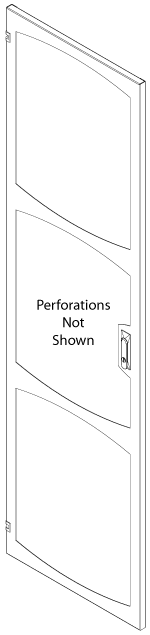

Perforated


Aluminum Framed Window Doors
Aluminum framed window doors allow visibility of indicator lights and other operating equipment. The clear anodized aluminum extruded frame is supplied with an 1/8” thick, clear or tinted (smoked), plexiglass window panel and magnetic latching system. These doors are surface mounted doors meaning they cover the panel opening of the frame providing the space necessary to mount equipment and accessories behind the door panel. The doors are available in either locking or non-locking versions. When mounted, the doors add 1.28” to the overall depth. The frame will be drilled to accept surface doors, therefore door mounting location must be supplied at the time of order placement.

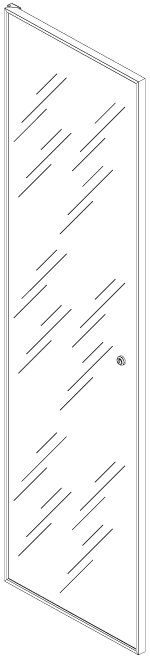

Locking

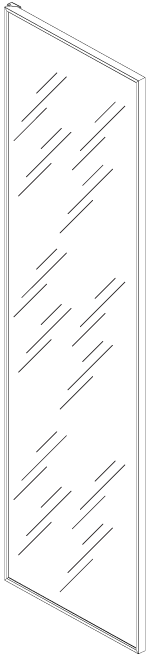

Non-locking


Contour Doors (ONLY compatible with 10 Series®)
Contour doors feature a contour, rather than a flat front, adding a unique aesthetic as well as additional space behind the door for bulky equipment. The door frame is supplied with one of 4 insert options, solid steel, perforated steel, 1/16” thick clear plexiglass or 1/16” thick tinted (smoked) plexiglass. These doors are surface mounted doors meaning they cover the panel opening of the frame providing the space necessary to mount equipment and accessories behind the door panel. When mounted, these doors add 3.11” to the overall depth. These doors are only available for 19” EIA width frames. The frame must be drilled to accept surface doors, therefore door mounting location must be supplied at the time of order placement.

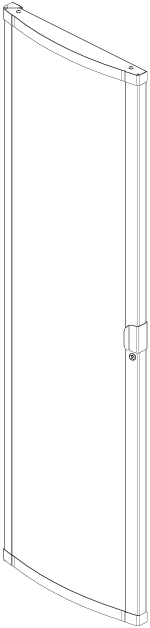

Solid

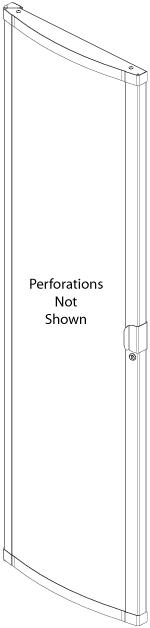

Perforated

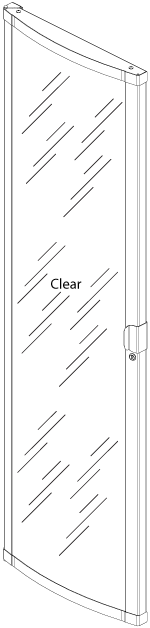

Clear Window

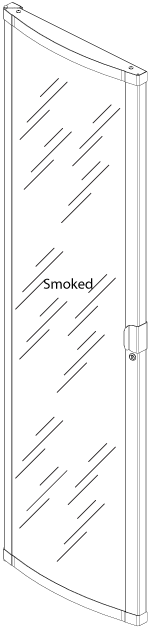

Smoke Window


Flush Mount Doors
Flush mount doors fit into the vertical panel opening of the frame. The doors utilize the mounting rails for an attachment point. Lift-off hinges, in a stylish black finish, allow for quick removal. The low-profile single point lockable handle provides the security your system may need.

Flush mount doors mount to the front flange of the mounting rails and can fill all or portions of the usable space in the front or rear of a frame. Be aware of possible interference if other rack mount equipment that utilizes the front flange of the rail is used in conjunction with flush mount doors.

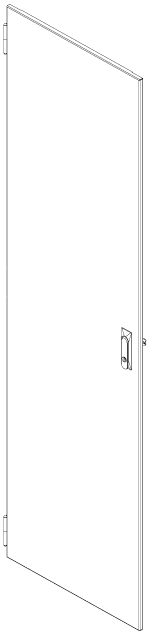

Solid

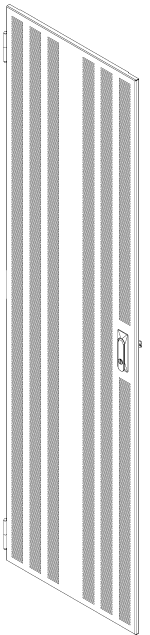

Vented

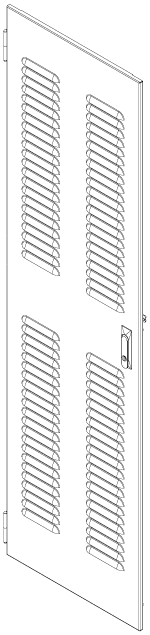

Louvered


Doors for FP1 & FP2

Formed Steel
Formed steel doors are surface mounted doors meaning they cover the panel opening of the frame providing the space necessary to mount equipment and accessories behind the door panel. Available in four styles, the doors feature a low-profile lockable single point latch handle and stylized black hinges that allow for 120° of rotation. When mounted, these doors add 1.00” to the overall depth. The frame will be drilled to accept surface doors, therefore door mounting location must be supplied at the time of order placement. Window and Perforated styles are ONLY compatible with FP2.

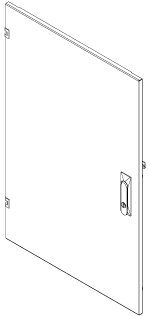

Solid

Vented

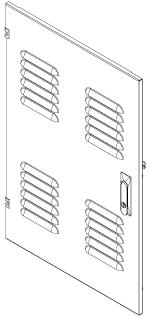

Louvered

Perforated

Window


Flush Mount Doors
Flush mount doors fit into the vertical panel opening of the frame. The doors utilize the mounting rails for an attachment point. Lift-off hinges, in a stylish black finish, allow for quick removal. The low-profile single point lockable handle provides the security your system may need.

Flush mount doors mount to the front flange of the mounting rails and can fill all or portions of the usable space in the front or rear of a frame. Be aware of possible interference if other rack mount equipment that utilizes the front flange of the rail is used in conjunction with flush mount doors.

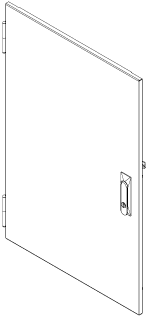

Solid

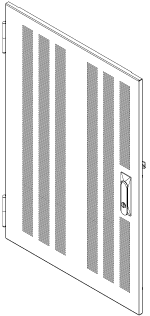

Vented

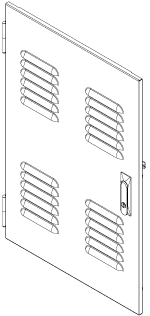

Louvered
