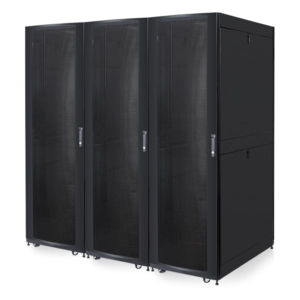

3BayServerCabinets-768x831-1

PROTECTOR™ Server Cabinets

The professional design of PROTECTOR™ server and network cabinets feature a ventilation rate of more than 80%, providing adequate cooling for the entire system. Available in several depths and heights, PROTECTOR™ server and network cabinets safely house almost any brand of server or networking equipment.

Did you know a typical Data Center uses 2 1/2 X more cooling than necessary and frequently still has hot spots. Check out our hot aisle/cold aisle containment solutions to aid in data center airflow management and help cut energy costs.

Need a Server Cabinet Fast?

We selected the most common sizes and paired them with the most common accessories. We call them “Pre-Configured” cabinets. Call us and we can process your order immediately – 507-287-3535.

Don’t See What You Need Here?

Upgrade to GUARDIAN™, our advanced server and network cabinet product line, which can be modified or customized to meet your exact requirements.

Features

Features

  • Curved locking front door with ventilation rate above 80%
  • Split “french style” locking rear door with ventilation rate above 80%
  • Horizontally split locking side panels make access easy
  • Top and bottom wiring channel can be closed and is fully adjustable
  • Rear vertical cable managers (two) included
  • Square hole mounting rails are adjustable front to rear and can accept Rackstuds™
  • Grounding kit and baying hardware included
  • Compatible with GapFill™ airflow management accessories
  • Levelers and heavy duty casters come standard
  • Full range of optional accessories, including PDUs
  • 5 year warranty

Paint / Finish

  • Color: Black
  • Our products are finished in textured powder paint. Powder coating provides a durable high-quality finish.

Load Rating

  • Static Load Rating: 3,000 lbs. [1364 kg.]
  • A cabinet has a static load when:
    • It is in its final, permanent, fully secured location, and
    • Its load is uniformly applied to the two sets of rack-mounting rails
  • Never move a cabinet with its maximum static load applied

Industry Standards

  • EIA 310-D
  • RoHS Compliant

Pre-Configured

It’s about saving time without compromise —
We have selected the most common sizes and paired them with the most common accessories to provide the ultimate solution – FAST!



Server Cabinets – 24.00″ [600 mm] Wide
Includes: Frame, 2 Pair Square Hole Rails, Solid Side Panels, Perforated Door on Front, Split Perforated “French Style” Door on Rear, Top with Cable Knockouts and Cooling Provisions, Bottom Panel, 2 Vertical Lacing Panels, Casters, Levelers, Grounding Kit, and Baying Hardware.



Part Number Rack Units
DC-42U2442-P 42U
DC-42U2448-P 42U
DC-47U2442-P 47U
DC-47U2448-P 47U



Network Cabinets – 31.50″ [800 mm] Wide
Includes: Frame, 2 Pair Square Hole Rails, Solid Side Panels, Perforated Door on Front, Split Perforated “French Style” Door on Rear, Top with Cable Knockouts and Cooling Provisions, Bottom Panel, 2 Vertical Lacing Panels, Casters, Levelers, Grounding Kit, and Baying Hardware.



Part Number Rack Units
DC-42U3242-P 42U
DC-42U3248-P 42U
DC-47U3242-P 47U
DC-47U3248-P 47U

Mounting rails centered in 31.50″ [800 mm] opening.

Product Type

Preconfigured

Used Where

Requires Rear Attach Point

Style

Material

Finish

Details

Sold As

Fits Rail to Rail Setting

U

Side Flange Style

Usable Space Front

Usable Space Rear

Usable Space Top

Usable Space Bottom

Usable Space Slope

Door Structure

Fits Frame Depth

Fits Frame Height

Max Usable Space Width

Max Usable Space Depth

Adds to Overall Height

Adds to Overall Width

Adds to Overall Depth

Fasteners Required

Overall Height

Overall Width

Overall Depth

Weight Load Capacity

Wedge Degree

CFM

dBA

Volts

kW

Amps

Phase

Recepticals

Plug Type

Cord Length

Airflow Direction

Locking

Hinge Side

Number of Monitors

Range of Motion

Mounting Hardware Included

Requires Paint

Requires Laminate

Laminate

Paint Color

Shipping Weight

UL Listed

RoHS Compliant

REACH Compliant

EIA Standard

MIL Standard

Meets Attenuation Levels

Seismic Compliance

PROTECTOR™ Server Cabinets Compatible Parts

Select Part Number Description Files Product Type Preconfigured Used Where Requires Rear Attach Point Style Material Finish Fits Rail to Rail Setting EIA Width U Front Flange Style Side Flange Style Usable Space Front Usable Space Rear Usable Space Top Usable Space Bottom Usable Space Slope Door Structure Fits Frame Depth Fits Frame Height Fits Frame Types Max Usable Space Width Max Usable Space Depth Adds to Overall Height Adds to Overall Width Add to Overall Depth Fasteners Required Overall Height Overall Width Overall Depth Weight Load Capacity Wedge Degree CFM dBA Volts kW Amps Phase Recepticals Plug Type Cord Length Airflow Direction Locking Hinge Side Number of Monitors Range of Motion Mounting Hardware Included Requires Paint Requires Laminate Laminate Paint Color Shipping Weight UL Listed RoHS Compliant REACH Compliant EIA Standard MIL Standard Meets Attenuation Levels Seismic Compliance Website Description Ships Contents Catalog Brochure Technical Drawing
CMA-001-C
459281
Velcro Cable Ties (20 pk) Cable Manager Accessory Style C [Universal] STP Cable Management Internal No Velcro Any Yes No (Not Painted) No No Yes Yes EIA-310-D No
CMA-BR-1
461562
Fiber Bend Radius Control Module - 1.00" Wide N/A Cable Management Internal No Polycarbonate Any No No (Not Painted) No No No No No
CMA-BR-2
461563
Fiber Bend Radius Control Module - 1.75" Wide N/A Cable Management Internal No Polycarbonate Any No No (Not Painted) No No No No No
CMA-BR-3
461564
Fiber Bend Radius Control Module - 3.00" Wide N/A Cable Management Internal No Polycarbonate Any No No (Not Painted) No No No No No
DC-1U-PPN-P
462551
Snap In Plastic Blanking Panel - 1U, 19" EIA Fits Square Hole Rails Only Used with PROTECTOR Server Cabinets Only N/A Panel Front, Rear No Solid Plastic 19 1 No No (Black Only) No No No No No
DC-1U-XPN-P
462549
Steel Blanking Panel - 1U, 19" EIA Used with PROTECTOR Server Cabinets Only N/A Panel Front, Rear No Solid Textured Powder Paint 19 1 No No (Black Only) No No No No No
DC-2U-DWR-P
462566
Locking Drawer - 2U, 19" EIA, Front Mount 13.50" [343mm] Deep, Extends 11.77" [299mm] Use with PROTECTOR Server Cabinets Only N/A Drawer Internal Yes Open Textured Powder Paint 19 2 13.320" (Max) Locking No No (Black Only) No No No No EIA-310-D No
DC-2U-XPN-P
462550
Steel Blanking Panel - 2U, 19" EIA Used with PROTECTOR Server Cabinets Only N/A Panel Front, Rear No Solid Textured Powder Paint 19 2 No No (Black Only) No No No No No
DC-42U2442-P
524001
Pre-Configured PROTECTOR Server Cabinet - 42U, 19" EIA HxWxD = [87.84" x 24.00" x 42.12"] [2000mm x 600mm x 1070mm] Weight Capacity = [3000 lbs.] [1361 kg.] Includes: Frame, 2 Pair Square Hole Rails, Solid Side Panels, Perforated Door on Front, Perforated French Style Door on Rear, Top with Cable Knockouts and Cooling Provisions, Bottom Panel, 2 Vertical Lacing Panels, Casters, and Levelers N/A Preconfigured Cabinet 1 No 19 42 87.84 24 42.12 3000 lbs. Static Load No (Black Only) No No No No No Pre-Configured PROTECTOR Server Cabinet - 42U, 19" EIA, 600mm Wide, 1070mm Deep Ships fully assembled. Frame, 2 Pair Square Hole Rails, Solid Side Panels, Perforated Door on Front, Perforated French Style Door on Rear, Top with Cable Knockouts and Cooling Provisions, Bottom Panel, 2 Vertical Lacing Panels, Casters, and Levelers
DC-42U2448-P
463791
Pre-Configured PROTECTOR Server Cabinet - 42U, 19" EIA HxWxD = [78.84" x 24.00" x 47.25"] [2000mm x 600mm x 1200mm] Weight Capacity = [3000 lbs.] [1361 kg.] Includes: Frame, 2 Pair Square Hole Rails, Solid Side Panels, Perforated Door on Front, Perforated French Style Door on Rear, Top with Cable Knockouts and Cooling Provisions, Bottom Panel, 2 Vertical Lacing Panels, Casters, and Levelers N/A Preconfigured Cabinet 1 No 19 42 78.84 24 47.25 3000 lbs. Static Load No (Black Only) No No No No No Pre-Configured PROTECTOR Server Cabinet - 42U, 19" EIA, 600mm Wide, 1200mm Deep Ships fully assembled. Frame, 2 Pair Square Hole Rails, Solid Side Panels, Perforated Door on Front, Perforated French Style Door on Rear, Top with Cable Knockouts and Cooling Provisions, Bottom Panel, 2 Vertical Lacing Panels, Casters, and Levelers
