emi/rfi shielded enclosure

EMI/RFI Shielded

Our rf Shielded Enclosures and accessories are engineered with performance in mind. These products are a perfect combination of quality and styling that shields your system effectively and presents it in an attractive package of which you can be proud. Tested to MIL-STD 285 at a certified test facility, our shielded enclosures can provides attenuation in excess of 100 db in the E-field to 38 db performance at 1 GHz.

The ideal cabinet is a metal box with no seams or openings. Any opening in a cabinet creates a potential EMI/RFI path into and out of the cabinet. However, in the real world, openings are required for maintenance and ventilation of the equipment, as well as for electrical input. These openings are covered by panels and/or doors which maintain electrical continuity by either metal-to-metal contact or by using conductive gaskets.

We offer two levels of EMI/RFI shielding depending on the attenuation and frequency performance level requirements.

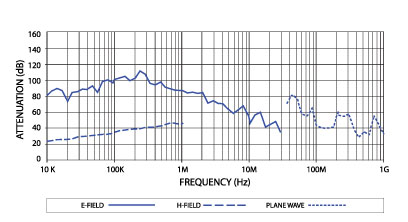

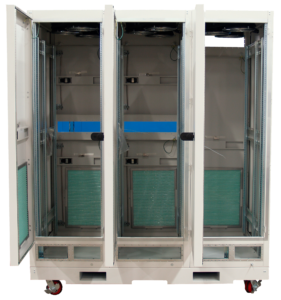

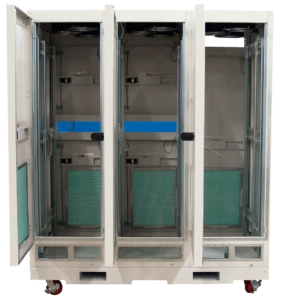

FCC Level

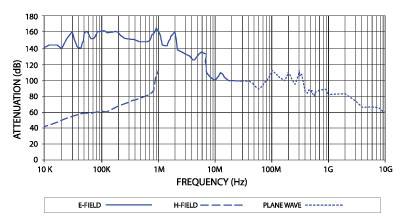

Tempest Level

Need a Custom RFI/EMI Shielded Enclosure?

We offer design services and solutions to meet the needs of any product specification. Whether you need an rf shielded server rack cabinet or a specific emi shielded enclosure, you can count on our expert resources and engineering capabilities to support any stage of your project, from concept to production. Contact us with your requirement today.

Features

EMI Shielded Enclosure Features

  • Modular product offering
  • 15U to 45U of rack space
  • Mounting rails with rack unit markings
  • Fully welded construction
  • Clean, seamless corner design
  • 14 gauge and 16 gauge material
  • Available in 19” and 24” panel widths
  • Overall depth options of 26 5/16” and 31 9/16”

Cabinet Specifications

  • Thru-Hole mounting rails – Adjustable front to rear
  • 10-32 tapped mounting rails optional

Enclosure Paint/Finish

  • Color: Select from one of nine proprietary color options. Sample kits are available upon request.
  • Our products are finished in textured powder paint. Powder coating provides a durable high-quality finish

Load Rating

  • Static load rating: 3,500 lbs.
  • A cabinet has a static load when:
    • It is in its final, permanent, fully secured location, and
    • Its load is uniformly applied to the two sets of rack-mounting rails
  • Never move a cabinet with its maximum static load applied

Industry Standard

  • EIA 310-D

Product Type

Style

Preconfigured

Used Where

Requires Rear Attach Point

Material

Finish

Details

Sold As

Fits Rail to Rail Setting

U

Side Flange Style

Usable Space Front

Usable Space Rear

Usable Space Top

Usable Space Bottom

Usable Space Slope

Door Structure

Fits Frame Depth

Fits Frame Height

Max Usable Space Width

Max Usable Space Depth

Adds to Overall Height

Adds to Overall Width

Adds to Overall Depth

Fasteners Required

Overall Height

Overall Width

Overall Depth

Weight Load Capacity

Wedge Degree

CFM

dBA

Volts

kW

Amps

Phase

Recepticals

Plug Type

Cord Length

Airflow Direction

Locking

Hinge Side

Number of Monitors

Range of Motion

Mounting Hardware Included

Requires Laminate

Laminate

Paint Color

Shipping Weight

UL Listed

RoHS Compliant

REACH Compliant

EIA Standard

MIL Standard

Meets Attenuation Levels

Seismic Compliance

EMI/RFI Shielded Compatible Parts

Select Part Number Description Files Read More
ALDX-XXX-180019
399661
Kit for Mounting Levelers to Riser Bases (Levelers Included) DWG
STP

Files: DWG
STP

Product Type Casters and Levelers

Requires Rear Attach Point No

Style Leveler Kit

Mounting Hardware Included Included - If not installed prior to shipment.

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant Yes

REACH Compliant Yes

BL-130
463766
3U Blower - 19" EIA 130 CFM, 120 Volt, 66.0 dBA, 3' Cord, NEMA 5-15 Plug STP

Files: STP

Product Type Blowers

Used Where Front, Rear

Requires Rear Attach Point Yes

Style 120 Volt

EIA Width 19

U 3

Fits Frame Depth Any

CFM 130

dBA 66

Volts 120

Plug Type NEMA 5-15 Plug

Cord Length 3' Cord

Mounting Hardware Included Included - If not installed prior to shipment.

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant Yes

REACH Compliant Yes

EIA Standard EIA-310-D

BL-130-230
463772
3U Blower - 19" EIA 130 CFM, 230 Volt, 66.0 dBA, 3' Cord, No Plug STP

Files: STP

Product Type Blowers

Used Where Front, Rear

Requires Rear Attach Point Yes

Style 230 Volt

EIA Width 19

U 3

Fits Frame Depth Any

CFM 130

dBA 66

Volts 230

Plug Type No Plug

Cord Length 3' Cord

Mounting Hardware Included Included - If not installed prior to shipment.

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant Yes

REACH Compliant Yes

EIA Standard EIA-310-D

BL-300
463767
3U Blower - 19" EIA 300 CFM, 120 Volt, 64.5 dBA, 3' Cord, NEMA 5-15 Plug STP

Files: STP

Product Type Blowers

Used Where Front, Rear

Requires Rear Attach Point Yes

Style 120 Volt

EIA Width 19

U 3

Fits Frame Depth Any

CFM 300

dBA 64.5

Volts 120

Plug Type NEMA 5-15 Plug

Cord Length 3' Cord

Mounting Hardware Included Included - If not installed prior to shipment.

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant Yes

REACH Compliant Yes

EIA Standard EIA-310-D

BL-300-230
463773
3U Blower - 19" EIA 300 CFM, 230 Volt, 64.5 dBA, 3' Cord, No Plug STP

Files: STP

Product Type Blowers

Used Where Front, Rear

Requires Rear Attach Point Yes

Style 230 Volt

EIA Width 19

U 3

Fits Frame Depth Any

CFM 300

dBA 64.5

Volts 230

Plug Type No Plug

Cord Length 3' Cord

Mounting Hardware Included Included - If not installed prior to shipment.

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant Yes

REACH Compliant Yes

EIA Standard EIA-310-D

BL-330
463768
4U Blower - 19" EIA 330 CFM, 120 Volt, 60.2 dBA, 3' Cord, NEMA 5-15 Plug STP

Files: STP

Product Type Blowers

Used Where Front, Rear

Requires Rear Attach Point Yes

Style 120 Volt

EIA Width 19

U 4

Fits Frame Depth Any

CFM 330

dBA 60.2

Volts 120

Plug Type NEMA 5-15 Plug

Cord Length 3' Cord

Mounting Hardware Included Included - If not installed prior to shipment.

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant Yes

REACH Compliant Yes

EIA Standard EIA-310-D

BL-330-230
463774
4U Blower - 19" EIA 330 CFM, 230 Volt, 60.2 dBA, 3' Cord, No Plug STP

Files: STP

Product Type Blowers

Used Where Front, Rear

Requires Rear Attach Point Yes

Style 230 Volt

EIA Width 19

U 4

Fits Frame Depth Any

CFM 330

dBA 60.2

Volts 230

Plug Type No Plug

Cord Length 3' Cord

Mounting Hardware Included Included - If not installed prior to shipment.

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant Yes

REACH Compliant Yes

EIA Standard EIA-310-D

BL-470
463769
4U Blower - 19" EIA 470 CFM, 120 Volt, 66.7 dBA, 3' Cord, NEMA 5-15 Plug STP

Files: STP

Product Type Blowers

Used Where Front, Rear

Requires Rear Attach Point Yes

Style 120 Volt

EIA Width 19

U 4

Fits Frame Depth Any

CFM 470

dBA 66.7

Volts 120

Plug Type NEMA 5-15 Plug

Cord Length 3' Cord

Mounting Hardware Included Included - If not installed prior to shipment.

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant Yes

REACH Compliant Yes

EIA Standard EIA-310-D

BL-470-230
463775
4U Blower - 19" EIA 470 CFM, 230 Volt, 66.7 dBA, 3' Cord, No Plug STP

Files: STP

Product Type Blowers

Used Where Front, Rear

Requires Rear Attach Point Yes

Style 230 Volt

EIA Width 19

U 4

Fits Frame Depth Any

CFM 470

dBA 66.7

Volts 230

Plug Type No Plug

Cord Length 3' Cord

Mounting Hardware Included Included - If not installed prior to shipment.

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant Yes

REACH Compliant Yes

EIA Standard EIA-310-D

BL-525
463770
5U Blower - 19" EIA 525 CFM, 120 Volt, 63.6 dBA, 3' Cord, NEMA 5-15 Plug STP

Files: STP

Product Type Blowers

Used Where Front, Rear

Requires Rear Attach Point Yes

Style 120 Volt

EIA Width 19

U 5

Fits Frame Depth Any

CFM 525

dBA 63.6

Volts 120

Plug Type NEMA 5-15 Plug

Cord Length 3' Cord

Mounting Hardware Included Included - If not installed prior to shipment.

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant Yes

REACH Compliant Yes

EIA Standard EIA-310-D
