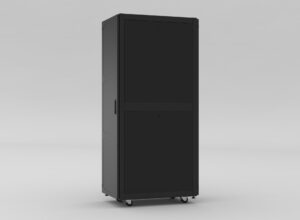

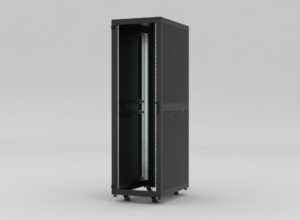

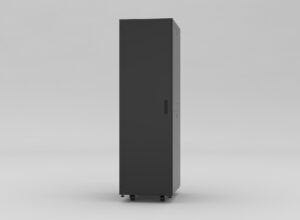

GUARDIAN™ Server Cabinets

GUARDIAN™ server cabinets feature thoughtful design, and sound engineering principles that safely house servers, and other networking equipment for use in mission critical IT environments while making it easy for your staff to access and manage.

Is your data center located in an area with frequent seismic activity? With the addition of a tie down bracket, GUARDIAN™ server cabinets meet IBC building code requirements for use in areas of regular seismic activity.

Did you know a typical Data Center uses two and a half times more cooling than necessary and frequently still has hot spots. Check out our hot aisle/cold aisle containment solutions to aid in data center airflow management and help cut energy costs.

Need a Server Cabinet Fast?

We selected the most common sizes and paired them with the most common accessories. We call them “Pre-Configured” cabinets. Call us and we can process your order immediately – 507-287-3535.

Need Custom Server Cabinet?

We offer design services and solutions to meet the needs of any product specification. You can count on our expert resources and engineering capabilities to support any stage of your project, from concept to production. Contact us with your requirement today.

Features

Features

  • Fully welded, robust steel frame
  • Compatible with overhead cabling and raised floor cabling systems
  • Perforated front and rear doors allow maximum air movement around equipment

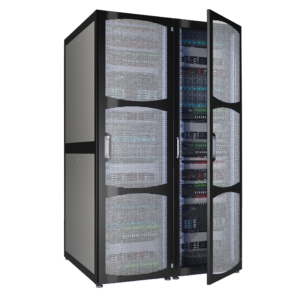

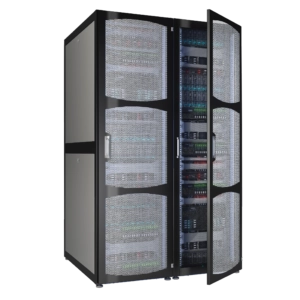

  • Frames fit together quickly, even with sides on, for easy installation in ganged applications
  • Includes mounting brackets for a variety of PDUs
  • Locking swing handle on front door provides easy but controlled access; two keys included
  • Compatible with GapFill™ airflow management accessories

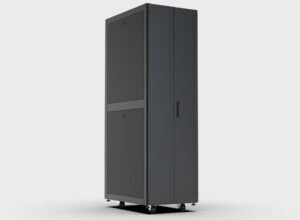

  • Rear doors are split for easy access and include 3-point, low profile, locking swing handle
  • Two sets of 19” EIA square-hole rack angles compatible with Rackstuds™
  • Rails are infinitely adjustable from front to rear for positioning flexibility
  • Optional tie down bracket that meets IBC building code requirements for use in High Seismic Areas.

Specifications

  • Welded 14 gauge steel frame
  • Rails have square holes with EIA 310-D spacing

Paint / Finish

  • Color: Select from one of nine proprietary color options. Sample kits are available upon request.
  • Our products are finished in textured powder paint. Powder coating provides a durable high-quality finish.

Load Rating

  • Static load rating: 3,000 lbs. [1364 kg.]
  • A cabinet has a static load when:
    • It is in its final, permanent, fully secured location, and
    • Its load is uniformly applied to the two sets of rack-mounting rails
  • Never move a cabinet with its maximum static load applied

Industry Standards

  • EIA 310-E

Pre-Configured

It’s about saving time without compromise —
We have selected the most common sizes and paired them with the most common accessories to provide the ultimate solution – FAST!



Server Cabinets – 24.00″ [600 mm] Wide
Includes: Frame, 2 Pair Square Hole Rails, Perforated Door on Front, Split Perforated “French Style” Door on Rear, Solid Side Panels, Solid Top with Cable Knockouts, Casters, and Levelers



Part Number Rack Units
DC-24U2436-G 24U
DC-42U2436-G 42U
DC-45U2436-G 45U
DC-48U2436-G 48U

These cabinets have a 36″ nominal depth.



Part Number Rack Units
DC-24U2443-G 24U
DC-42U2443-G 42U
DC-45U2443-G 45U
DC-48U2443-G 48U

These cabinets have a 42″ nominal depth.



Part Number Rack Units
DC-24U2448-G 24U
DC-42U2448-G 42U
DC-45U2448-G 45U
DC-48U2448-G 48U

These cabinets have a 48″ nominal depth.

Product Type

Style

Preconfigured

Used Where

Requires Rear Attach Point

Material

Finish

Details

Sold As

Fits Rail to Rail Setting

U

Side Flange Style

Usable Space Front

Usable Space Rear

Usable Space Top

Usable Space Bottom

Usable Space Slope

Door Structure

Fits Frame Depth

Fits Frame Height

Max Usable Space Width

Max Usable Space Depth

Adds to Overall Height

Adds to Overall Width

Adds to Overall Depth

Fasteners Required

Overall Height

Overall Width

Overall Depth

Weight Load Capacity

Wedge Degree

CFM

dBA

Volts

kW

Amps

Phase

Recepticals

Plug Type

Cord Length

Airflow Direction

Locking

Hinge Side

Number of Monitors

Range of Motion

Mounting Hardware Included

Requires Laminate

Laminate

Paint Color

Shipping Weight

UL Listed

RoHS Compliant

REACH Compliant

EIA Standard

MIL Standard

Meets Attenuation Levels

Seismic Compliance

GUARDIAN™ Server Cabinets Compatible Parts

Select Part Number Description Files Read More
CMA-BR-1
461562
Fiber Bend Radius Control Module - 1.00" Wide N/A

Files: N/A

Product Type Cable Managers

Used Where Internal

Requires Rear Attach Point No

Style Accessory

Material Polycarbonate

Fits Frame Depth Any

Mounting Hardware Included Not Included

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

CMA-BR-2
461563
Fiber Bend Radius Control Module - 1.75" Wide N/A

Files: N/A

Product Type Cable Managers

Used Where Internal

Requires Rear Attach Point No

Style Accessory

Material Polycarbonate

Fits Frame Depth Any

Mounting Hardware Included Not Included

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

CMA-BR-3
461564
Fiber Bend Radius Control Module - 3.00" Wide N/A

Files: N/A

Product Type Cable Managers

Used Where Internal

Requires Rear Attach Point No

Style Accessory

Material Polycarbonate

Fits Frame Depth Any

Mounting Hardware Included Not Included

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

CMO-3119-FR
460273
Full Depth Front to Rear Overhead Cable Tray Top Panel - 19" EIA Fits 37.75" [960mm] Deep GUARDIAN Server Cabinet Only N/A

Files: N/A

Product Type Top Panels

Used Where Top

Requires Rear Attach Point No

Style Solid

Material 16-gauge Steel

Finish Textured Powder Paint

EIA Width 19

U Fills 18

Mounting Hardware Included Not Included

Requires Paint Yes (Select Color)

Requires Laminate No

UL Listed No

RoHS Compliant Yes

REACH Compliant Yes

CMO-3819-FR
458998
Full Depth Front to Rear Overhead Cable Tray Top Panel - 19" EIA Fits 44.75" [1135mm] Deep GUARDIAN Server Cabinet Only N/A

Files: N/A

Product Type Top Panels

Used Where Top

Requires Rear Attach Point No

Style Solid

Material 16-gauge Steel

Finish Textured Powder Paint

EIA Width 19

U Fills 22

Mounting Hardware Included Not Included

Requires Paint Yes (Select Color)

Requires Laminate No

UL Listed No

RoHS Compliant Yes

REACH Compliant Yes

CMO-4319-FR
459001
Full Depth Front to Rear Overhead Cable Tray Top Panel - 19" EIA Fits 50.00" [1270mm] Deep GUARDIAN Server Cabinet Only N/A

Files: N/A

Product Type Top Panels

Used Where Top

Requires Rear Attach Point No

Style Solid

Material 16-gauge Steel

Finish Textured Powder Paint

EIA Width 19

U Fills 25

Mounting Hardware Included Not Included

Requires Paint Yes (Select Color)

Requires Laminate No

UL Listed No

RoHS Compliant Yes

REACH Compliant Yes

DC-24U2436-G
460850
Pre-Configured GUARDIAN Server Cabinet - 24U, 19" EIA HxWxD = [50.50" x 24.00" x 37.75"] [1283mm x 600mm x 960mm] Weight Capacity = [2500 lbs.] [1134 kg.] Includes: Frame, 2 Pair Square Hole Rails, Perforated Door on Front, Perforated French Style Door on Rear, Solid Side Panels, Solid Top with Cable Knockouts, Casters, and Levelers N/A

Files: N/A

Product Type Preconfigured Cabinet

Preconfigured 1

Requires Rear Attach Point No

EIA Width 19

U 24

Overall Height 50.5

Overall Width 24

Overall Depth 37.75

Weight Load Capacity 2500 lbs. Static Load

Requires Paint Yes (Select Color)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

Website Description Pre-Configured GUARDIAN Server Cabinet - 24U, 19" EIA, 960mm Deep

Ships Ships fully assembled.

Contents Frame, 2 Pair Square Hole Rails, Perforated Door on Front, Perforated French Style Door on Rear, Solid Side Panels, Solid Top with Cable Knockouts, Casters, and Levelers

DC-24U2443-G
460851
Pre-Configured GUARDIAN Server Cabinet - 24U, 19" EIA HxWxD = [50.50" x 24.00" x 44.75"] [1283mm x 600mm x 1135mm] Weight Capacity = [2500 lbs.] [1134 kg.] Includes: Frame, 2 Pair Square Hole Rails, Perforated Door on Front, Perforated French Style Door on Rear, Solid Side Panels, Solid Top with Cable Knockouts, Casters, and Levelers N/A

Files: N/A

Product Type Preconfigured Cabinet

Preconfigured 1

Requires Rear Attach Point No

EIA Width 19

U 24

Overall Height 50.5

Overall Width 24

Overall Depth 44.75

Weight Load Capacity 2500 lbs. Static Load

Requires Paint Yes (Select Color)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

Website Description Pre-Configured GUARDIAN Server Cabinet - 24U, 19" EIA, 1135mm Deep

Ships Ships fully assembled.

Contents Frame, 2 Pair Square Hole Rails, Perforated Door on Front, Perforated French Style Door on Rear, Solid Side Panels, Solid Top with Cable Knockouts, Casters, and Levelers

DC-24U2448-G
460852
Pre-Configured GUARDIAN Server Cabinet - 24U, 19" EIA HxWxD = [50.50" x 24.00" x 50.00"] [1283mm x 600mm x 1270mm] Weight Capacity = [2500 lbs.] [1134 kg.] Includes: Frame, 2 Pair Square Hole Rails, Perforated Door on Front, Perforated French Style Door on Rear, Solid Side Panels, Solid Top with Cable Knockouts, Casters, and Levelers N/A

Files: N/A

Product Type Preconfigured Cabinet

Preconfigured 1

Requires Rear Attach Point No

EIA Width 19

U 24

Overall Height 50.5

Overall Width 24

Overall Depth 50

Weight Load Capacity 2500 lbs. Static Load

Requires Paint Yes (Select Color)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

Website Description Pre-Configured GUARDIAN Server Cabinet - 24U, 19" EIA, 1270mm Deep

Ships Ships fully assembled. AC Unit Inside of Cabinet

Contents Frame, 2 Pair Square Hole Rails, Perforated Door on Front, Perforated French Style Door on Rear, Solid Side Panels, Solid Top with Cable Knockouts, Casters, and Levelers

DC-42U2436-G
460853
Pre-Configured GUARDIAN Server Cabinet - 42U, 19" EIA HxWxD = [82.00" x 24.00" x 37.75"] [2083mm x 600mm x 960mm] Weight Capacity = [2500 lbs.] [1134 kg.] Includes: Frame, 2 Pair Square Hole Rails, Perforated Door on Front, Perforated French Style Door on Rear, Solid Side Panels, Solid Top with Cable Knockouts, Casters, and Levelers STP

Files: STP

Product Type Preconfigured Cabinet

Preconfigured 1

Requires Rear Attach Point No

EIA Width 19

U 42

Overall Height 82

Overall Width 24

Overall Depth 37.75

Weight Load Capacity 2500 lbs. Static Load

Requires Paint Yes (Select Color)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

Website Description Pre-Configured GUARDIAN Server Cabinet - 42U, 19" EIA, 960mm Deep

Ships Ships fully assembled.

Contents Frame, 2 Pair Square Hole Rails, Perforated Door on Front, Perforated French Style Door on Rear, Solid Side Panels, Solid Top with Cable Knockouts, Casters, and Levelers
