10 Series®

10 Series® is an extremely heavy-duty product line capable of handling 3,500 lbs. It is a configure-to-order product allowing users to select from a variety of standard components to build exactly what is required for their specific application. The entire product will ship as configured so there is no assembly required.

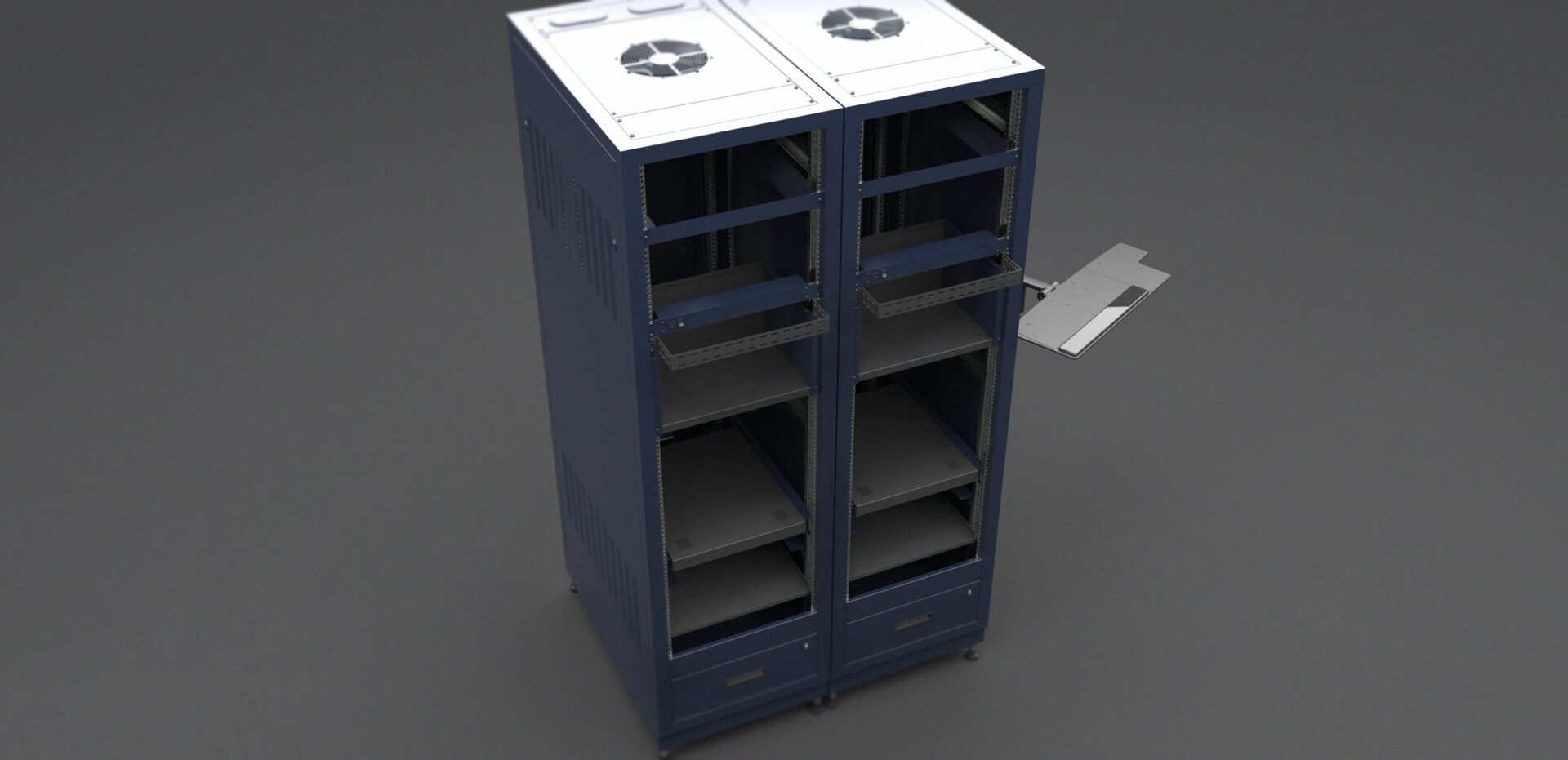

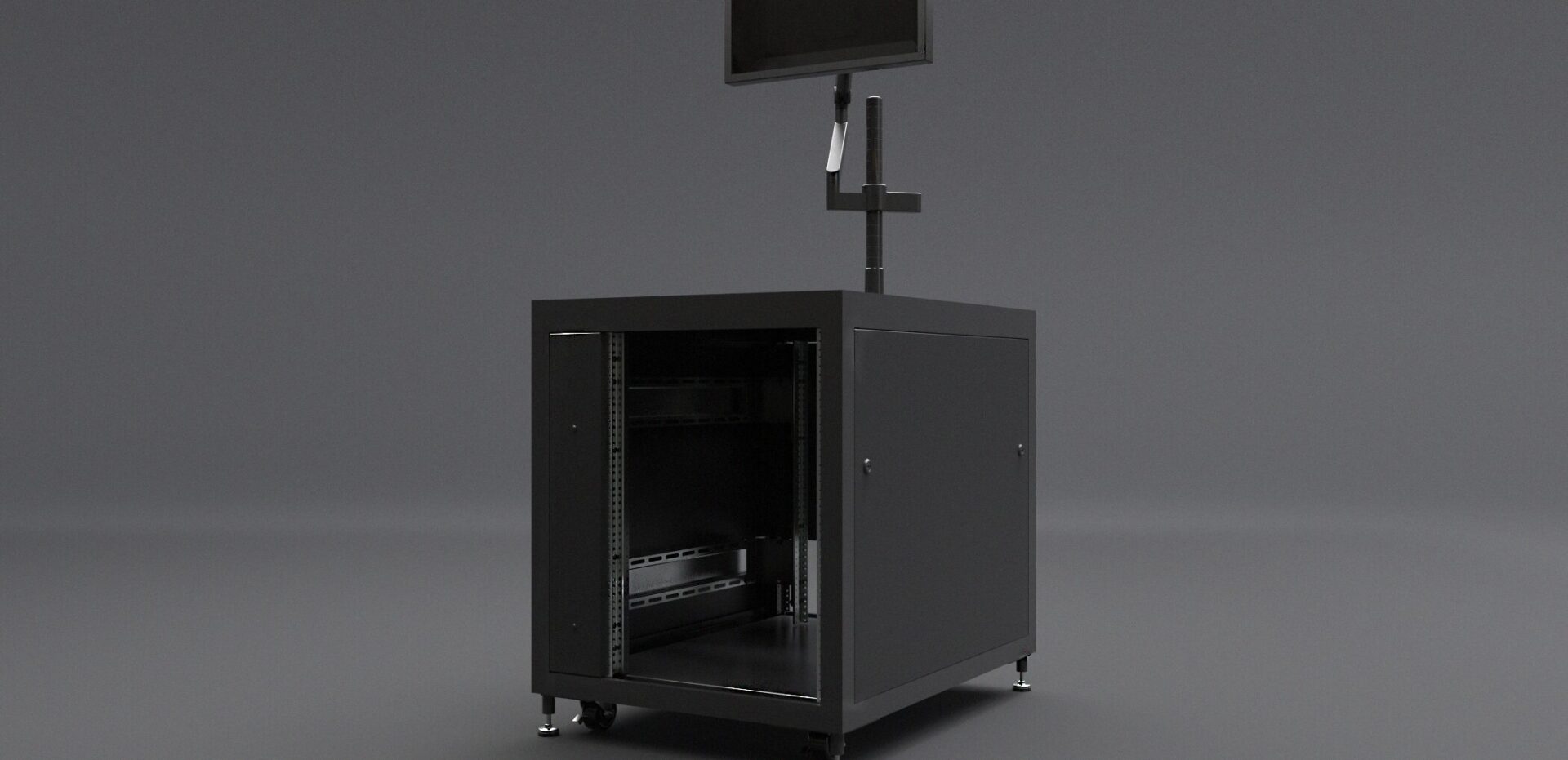

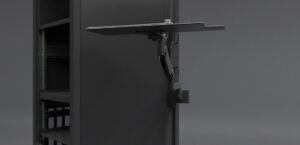

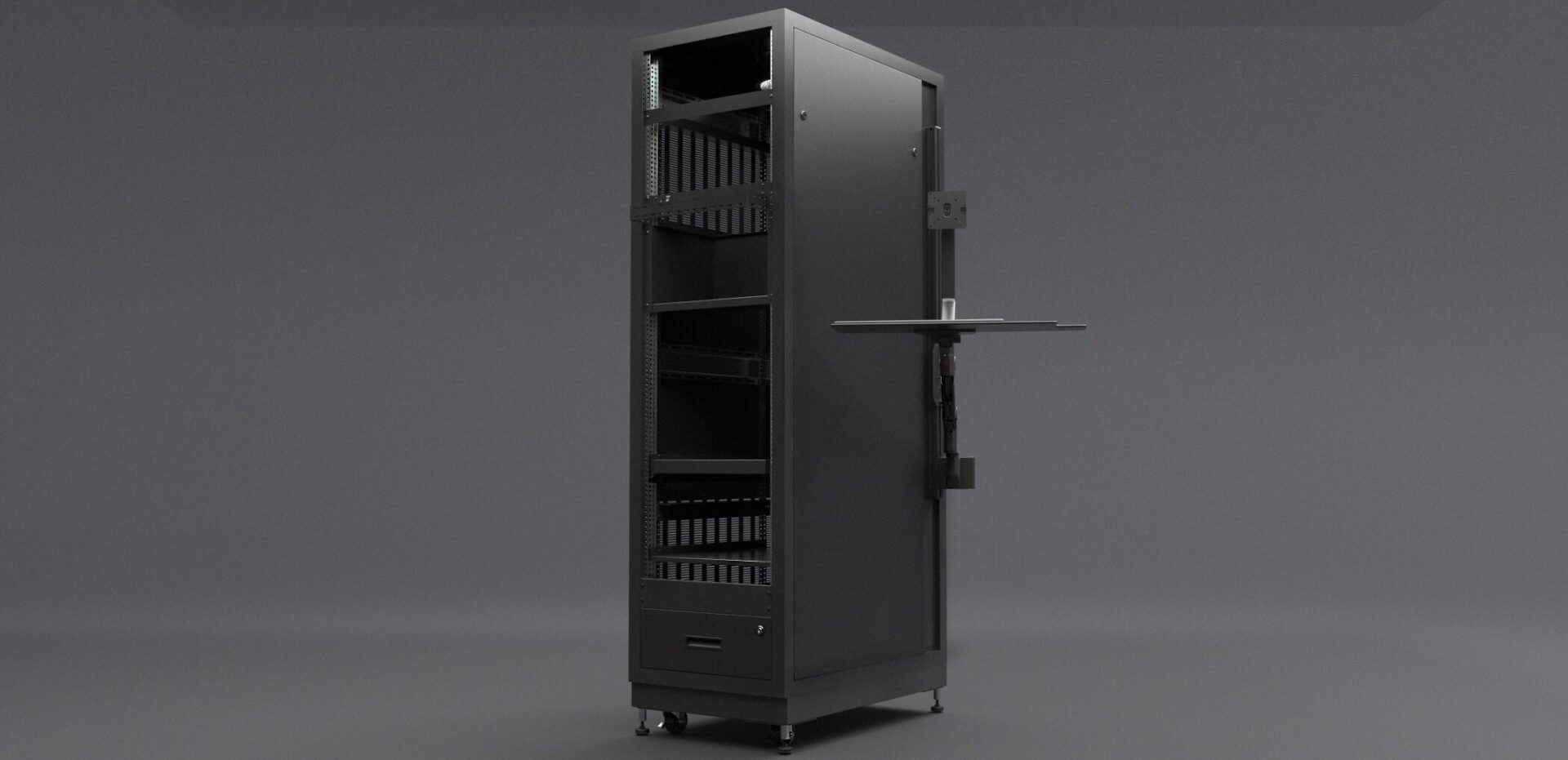

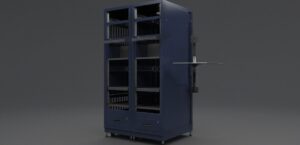

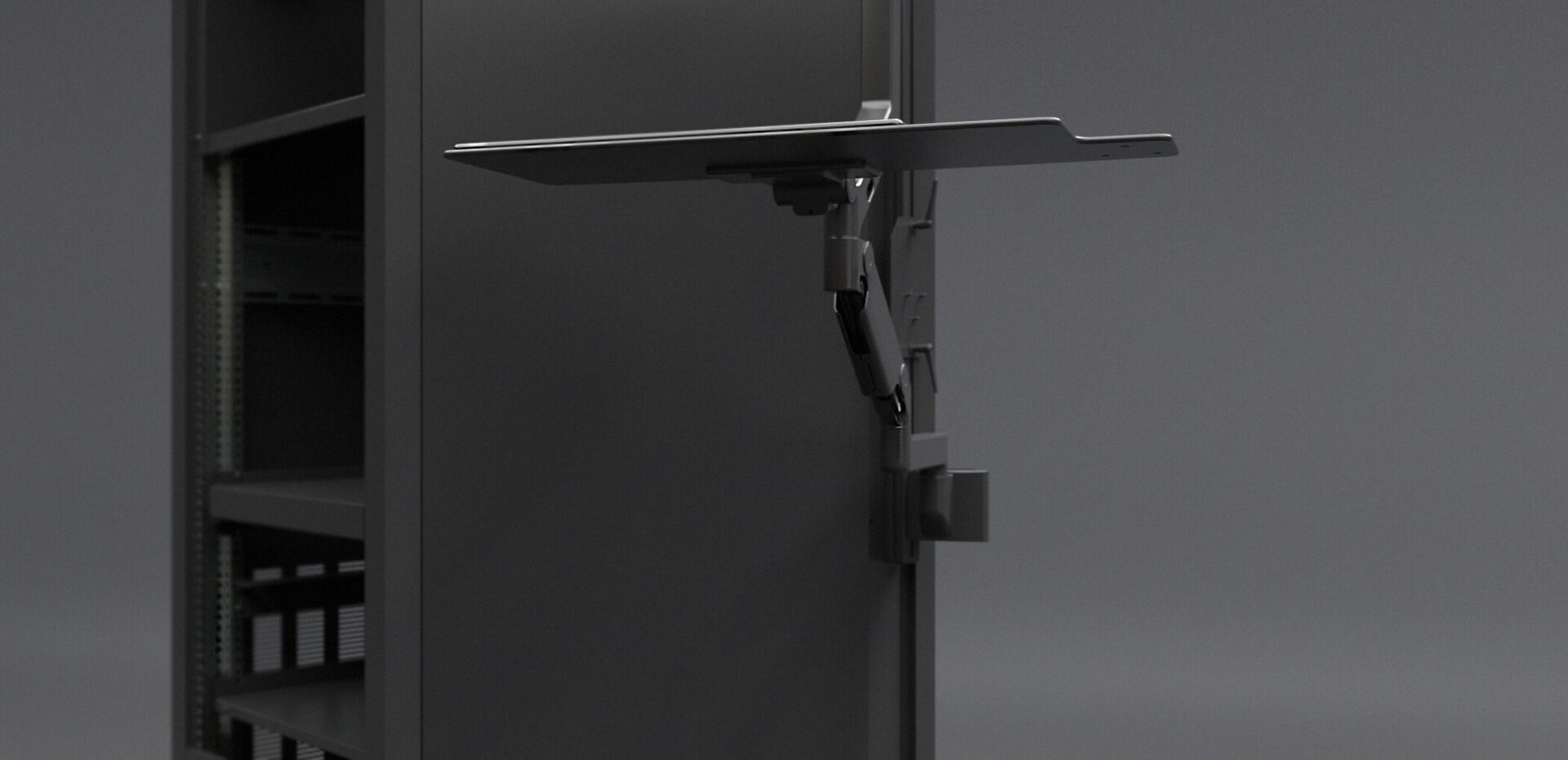

This flexible platform can be used as a stand-alone rack or can be ganged or joined together on site to create a console. Mix and match heights to get the desired layout. There are even wedge sections available to turn corners. Most importantly, save valuable rack space by putting your monitor and or keyboard on the side.

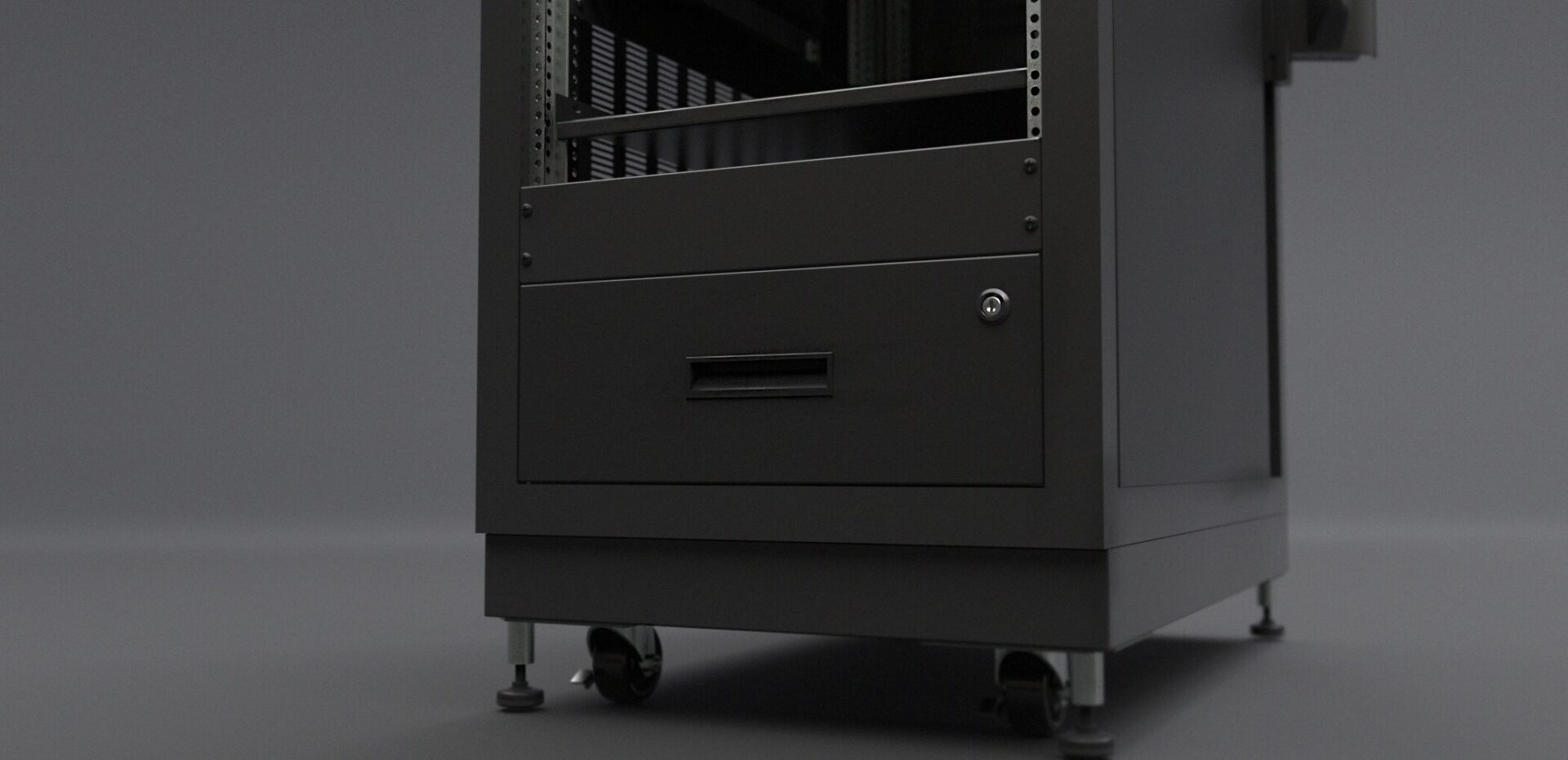

Most commonly used to create test stations, 10 Series® enclosures protect sensitive computer, data storage, and test equipment. It is available in a variety of heights, widths, and depths to meet the most stringent demands for automation and testing systems. Internal and external accessories such as shelves, fans, power, and cable management are available to complete the design.
