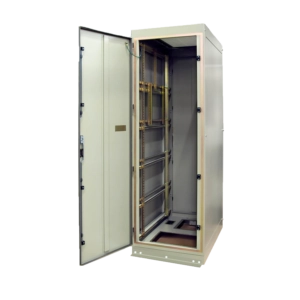

Telcordia GR-63 Seismic Server Cabinet

Telcordia GR-63 seismic qualified enclosures are designed to meet or exceed the Telcordia NEBS Zone 4 testing objectives and requirements. GR-63 describes the protection level of an enclosure. It requires an enclosure to provide a level of protection such that the equipment inside shall sustain operation without replacement of components, manual rebooting, (or) human intervention during an earthquake

To achieve GR-63 compliance, enclosure manufacturers turn to independent, third-party testing facilities. An enclosure is loaded to capacity and mounted on a shaker table. The shaker table then simulates an earthquake, shaking in every potential direction at varying levels of intensity up to the equivalent of an 8.3 earthquake. Accelerometers are attached to the enclosure to measure its vibration and sway during the test.

To pass the test and achieve the seismic rating, the enclosure must not sway more than three inches in any direction and all components must remain operable during and after the test. This test is the same for every enclosure manufacturer, regardless of where that enclosure is going to be used or its intended purpose.

Need a Custom Seismic Rated Rack Cabinet?

We offer design services and solutions to meet the needs of any product specification. You can count on our expert resources and engineering capabilities to support any stage of your project, from concept to production. Contact us with your requirement today.

Did you Know?

Earthquakes are not limited to the state of California, nor are they infrequent. Seismic events take place every day throughout much of the continental United States. There are two standards by which enclosures are deemed seismic. Telcordia GR-63 and International Building Code (IBC). Learn more about the differences here.

Features

When comparing cabinets for seismic installations, ask what the DYNAMIC (seismic) load rating is. Most seismic cabinets will have a higher STATIC (non-seismic) load rating, but the dynamic rating is the only one that matters.

Rack Features

  • Fully welded frame structure
  • Nine heights, four depths
  • Multi-formed vertical corner posts
  • Heavy duty door with multi-point latching system
  • Robust door hinges
  • Locking hardware
  • Floor tie-down brackets

Specifications

  • Thru-Hole mounting rails – Adjustable front to rear
  • 10-32 tapped mounting rails optional

Paint/Finish

  • Color: Select from one of nine proprietary color options. Sample kits are available upon request.
  • Our products are finished in textured powder paint. Powder coating provides a durable high-quality finish

Load Rating

  • Static load rating: 3,500 lbs.
  • 630 lb. dynamic load rating with center of gravity at approximately 30”
  • A cabinet has a static load when:
    • It is in its final, permanent, fully secured location, and
    • Its load is uniformly applied to the two sets of rack-mounting rails
  • Never move a cabinet with its maximum static load applied

Industry Standard

  • EIA 310-D

Loading Tips

Installation of the seismic cabinet or rack

  • The cabinet or rack cannot be anchored to the ground if casters or leveling feet are on the frame.
  • To achieve maximum protection, the cabinet or rack needs to be properly and firmly anchored to the floor of the building.
  • Consult a structural/building engineer if you need help installing the concrete anchors.

How the equipment is distributed in the cabinet or rack

  • Keep the center-of-gravity low by placing heavier components towards the bottom of the enclosure.
  • Ganging cabinets or racks will produce a more stable installation than a single cabinet or rack.

Product Type

Style

Preconfigured

Used Where

Requires Rear Attach Point

Material

Finish

Details

Sold As

Fits Rail to Rail Setting

U

Side Flange Style

Usable Space Front

Usable Space Rear

Usable Space Top

Usable Space Bottom

Usable Space Slope

Door Structure

Fits Frame Depth

Fits Frame Height

Max Usable Space Width

Max Usable Space Depth

Adds to Overall Height

Adds to Overall Width

Adds to Overall Depth

Fasteners Required

Overall Height

Overall Width

Overall Depth

Weight Load Capacity

Wedge Degree

CFM

dBA

Volts

kW

Amps

Phase

Recepticals

Plug Type

Cord Length

Airflow Direction

Locking

Hinge Side

Number of Monitors

Range of Motion

Mounting Hardware Included

Requires Laminate

Laminate

Paint Color

Shipping Weight

UL Listed

RoHS Compliant

REACH Compliant

EIA Standard

MIL Standard

Meets Attenuation Levels

Seismic Compliance
