Mounting Rails and Straps
Mounting Rail and Mounting Strap Options
Mounting rails and mounting straps allow for equipment to be rack mounted inside of the enclosure. While both are used to rack mount equipment they the specific functionality of each is very different. We offer several styles, however the shape is different for 10 Series® allowing for higher weight load capacity. Mounting hardware is included, if not configured prior to shipment.
Mounting Rails
Our mounting rails are unique in that they have two flanges – front and side. The front flange is the standard flange that all rack mount equipment and accessories utilize. The side flange is used to mount accessories that are unique to Emcor. By using the side flange to mount accessories, it leaves the front flange open to mount equipment or panels.
In addition, each flange can be ordered with Tapped-Holes or with Thru-Holes (meant to be used with clip nuts). Both the clip nuts and tapped holes accept #10-32 screws. Clip nuts and screws sold separately.
These “S shaped” mounting rails are compatible with 10 Series®

Thru-Holes on Both Flanges
(Supplied with frame)

Tapped-Hole on the Front Flange Thru-Hole on the Side Flange

Tapped-Holes on both Flanges
These “L shaped” mounting rails are compatible with ESQ®, FP1, and FP2.

Thru-Holes on Both Flanges
(Supplied with frame)

Tapped-Hole on the Front Flange Thru-Hole on the Side Flange

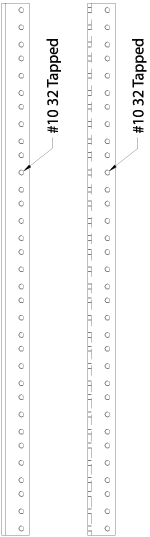

Tapped-Holes on both Flanges
Mounting Straps
Mounting straps are used when there is a mix of different depth accessories in a frame. Straps allow full depth items that require a rear attach point to pass by the strap and attach to the rail behind it. Because mounting straps do NOT have a front flange, ONLY accessories that are side mount style can be rack mounted using mounting straps. Mounting straps are only available with Thru-Holes. Clip nuts and screws sold separately.
These “formed” mounting straps are compatible with 10 Series®.

Thru Hole
These “flat” mounting straps are compatible with ESQ®, FP1, and FP2.

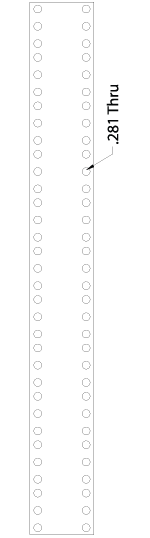

Thru Hole
