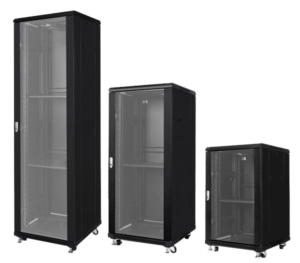

AVCabinets

Security/AV Cabinets

Emcor’s purpose-built security/AV server cabinets meet the specific requirements of IP, analog, and hybrid security systems by providing durable physical layer to protect sensitive electronics inside.

Knock outs in the top and bottom allow for cable ingress/egress. Cooling vents and fans ensure equipment stays at the ideal temperature. Lockable doors and side panels keep equipment safe and secure. Quick-release side panels allow full access to components and wiring.

These security A/V cabinets come with one vented shelf, as well as swivel casters and leveling legs to allow for mobility and stable positioning once in place.

Need a Security/AV Cabinet Fast?

We selected the most common sizes and paired them with the most common accessories. We call them “Pre-Configured” cabinets. Call us and we can process your order immediately – 507-287-3535.

Need a Custom Security/AV Cabinet?

We offer design services and solutions to meet the needs of any product specification. You can count on our expert resources and engineering capabilities to support any stage of your project, from concept to production. Contact us with your requirement today.

Features

Features

  • Sturdy construction capable of holding up to 1760 lbs. [800 kg.]
  • Tapped 12-24 rails allow for rack mounted gear
  • Quick-release, removable sides provide easy access to wiring
  • Cooling vents throughout the rack allow for enhanced air circulation
  • Swivel casters allow simple portability, leveling legs provide stability
  • Fan kit (included) helps keep equipment cool

Paint / Finish

  • Our products are finished in textured powder paint. Powder coating provides a durable high-quality finish.

Load Rating

  • Static Load Rating: 1760 lbs. [800 kg.]
  • A cabinet has a static load when:
    • It is in its final, permanent, fully secured location, and
    • Its load is uniformly applied to the two sets of rack-mounting rails
  • Never move a cabinet with its maximum static load applied

Industry Standards

  • EIA 310-D

Pre-Configured

It’s about saving time without compromise —

We have selected the most common sizes and paired them with the most common accessories to provide the ultimate solution – FAST!

Security A/V Cabinets

Includes: Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with Fan Kit (Two or Four 110 CFM Fans – based on depth), Bottom, Casters, and Levelers.

Part Number Rack Units
AVC-18U2424 18U
AVC-27U2424 27U
AVC-42U2424 42U
AVC-47U2424 47U

This depth Includes two 110 CFM Fans.



Part Number Rack Units
AVC-42U2430 42U
AVC-47U2430 47U

This depth Includes two 110 CFM Fans.



Part Number Rack Units
AVC-42U2440 42U
AVC-47U2440 47U

This depth Includes four 110 CFM Fans.

Product Type

Preconfigured

Used Where

Requires Rear Attach Point

Style

Material

Finish

Details

Sold As

Fits Rail to Rail Setting

U

Side Flange Style

Usable Space Front

Usable Space Rear

Usable Space Top

Usable Space Bottom

Usable Space Slope

Door Structure

Fits Frame Depth

Fits Frame Height

Max Usable Space Width

Max Usable Space Depth

Adds to Overall Height

Adds to Overall Width

Adds to Overall Depth

Fasteners Required

Overall Height

Overall Width

Overall Depth

Weight Load Capacity

Wedge Degree

CFM

dBA

Volts

kW

Amps

Phase

Recepticals

Plug Type

Cord Length

Airflow Direction

Locking

Hinge Side

Number of Monitors

Range of Motion

Mounting Hardware Included

Requires Paint

Requires Laminate

Laminate

Paint Color

Shipping Weight

UL Listed

RoHS Compliant

REACH Compliant

EIA Standard

MIL Standard

Meets Attenuation Levels

Seismic Compliance

Security/AV Cabinets Compatible Parts

Select Part Number Description Files Product Type Preconfigured Used Where Requires Rear Attach Point Style Material Finish Fits Rail to Rail Setting EIA Width U Front Flange Style Side Flange Style Usable Space Front Usable Space Rear Usable Space Top Usable Space Bottom Usable Space Slope Door Structure Fits Frame Depth Fits Frame Height Fits Frame Types Max Usable Space Width Max Usable Space Depth Adds to Overall Height Adds to Overall Width Add to Overall Depth Fasteners Required Overall Height Overall Width Overall Depth Weight Load Capacity Wedge Degree CFM dBA Volts kW Amps Phase Recepticals Plug Type Cord Length Airflow Direction Locking Hinge Side Number of Monitors Range of Motion Mounting Hardware Included Requires Paint Requires Laminate Laminate Paint Color Shipping Weight UL Listed RoHS Compliant REACH Compliant EIA Standard MIL Standard Meets Attenuation Levels Seismic Compliance Website Description Ships Contents Catalog Brochure Technical Drawing
AVC-18U2424
462073
AV Cabinet - 18U, 19" EIA HxWxD = [38.90" x 24.00" x 24.00"] [988mm x 600mm x 600mm] Weight Capacity = [1760 lbs.] [800 kg.] Includes: Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with 2 Fans (110 CFM), Bottom, Casters, Levelers N/A Free Standing Cabinet 1 No 19 18 54.65 24 24 1760 lbs. Static Load No (Black Only) No No No No No Pre-Configured AV Cabinet - 18U, 19" EIA, 600mm Deep Ships fully assembled. Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with 2 Fans (110 CFM), Bottom, Casters, Levelers
AVC-27U2424
462074
AV Cabinet - 27U, 19" EIA HxWxD = [54.65" x 24.00" x 24.00"] [1388mm x 600mm x 600mm] Weight Capacity = [1760 lbs.] [800 kg.] Includes: Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with 2 Fans (110 CFM), Bottom, Casters, Levelers. N/A Preconfigured Cabinet 1 No 19 27 54.65 24 24 1760 lbs. Static Load No (Black Only) No No No No No Pre-Configured AV Cabinet - 27U, 19" EIA, 600mm Deep Ships fully assembled. Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with 2 Fans (110 CFM), Bottom, Casters, Levelers.
AVC-42U2424
462075
AV Cabinet - 42U, 19" EIA HxWxD = [80.90" x 24.00" x 24.00"] [2055mm x 600mm x 600mm] Weight Capacity = [1760 lbs.] [800 kg.] Includes: Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with 4 Fans (110 CFM), Bottom, Casters, Levelers N/A Preconfigured Cabinet 1 No 19 42 80.9 24 24 1760 lbs. Static Load No (Black Only) No No No No No Pre-Configured AV Cabinet - 42U, 19" EIA, 600mm Deep Ships fully assembled. Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with 4 Fans (110 CFM), Bottom, Casters, Levelers
AVC-42U2430
462077
AV Cabinet - 42U, 19" EIA HxWxD = [80.90" x 24.00" x 31.50"] [2055mm x 600mm x 800mm] Weight Capacity = [1760 lbs.] [800 kg.] Includes: Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with 4 Fans (110 CFM), Bottom, Casters, Levelers N/A Preconfigured Cabinet 1 No 19 42 80.9 24 31.5 1760 lbs. Static Load No (Black Only) No No No No No Pre-Configured AV Cabinet - 42U, 19" EIA, 800mm Deep Ships fully assembled. Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with 4 Fans (110 CFM), Bottom, Casters, Levelers
AVC-42U2440
462079
AV Cabinet - 42U, 19" EIA HxWxD = [80.90" x 24.00" x 39.50"] [2055mm x 600mm x 1000mm] Weight Capacity = [1760 lbs.] [800 kg.] Includes: Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with 4 Fans (110 CFM), Bottom, Casters, Levelers N/A Preconfigured Cabinet 1 No 19 42 80.9 24 39.5 1760 lbs. Static Load No (Black Only) No No No No No Pre-Configured AV Cabinet - 42U, 19" EIA, 1000mm Deep Ships fully assembled. Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with 4 Fans (110 CFM), Bottom, Casters, Levelers
AVC-47U2424
462076
AV Cabinet - 47U, 19" EIA HxWxD = [89.65" x 24.00" x 24.00"] [2055mm x 600mm x 600mm] Weight Capacity = [1760 lbs.] [800 kg.] Includes: Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with Fan Panel, Bottom, Casters, Levelers N/A Preconfigured Cabinet 1 No 19 47 89.65 24 24 1760 lbs. Static Load No (Black Only) No No No No No Pre-Configured AV Cabinet - 47U, 19" EIA, 600mm Deep Ships fully assembled. Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with Fan Panel, Bottom, Casters, Levelers
AVC-47U2430
462078
AV Cabinet - 47U, 19" EIA HxWxD = [89.65" x 24.00" x 31.50"] [2055mm x 600mm x 800mm] Weight Capacity = [1760 lbs.] [800 kg.] Includes: Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with 4 Fans (110 CFM), Bottom, Casters, Levelers N/A Preconfigured Cabinet 1 No 19 47 89.65 24 31.5 1760 lbs. Static Load No (Black Only) No No No No No Pre-Configured AV Cabinet - 47U, 19" EIA, , 800mm Deep Ships fully assembled. Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with 4 Fans (110 CFM), Bottom, Casters, Levelers
AVC-47U2440
462080
AV Cabinet - 47U, 19" EIA HxWxD = [89.65" x 24.00" x 39.50"] [2055mm x 600mm x 1000mm] Weight Capacity = [1760 lbs.] [800 kg.] Includes: Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with 4 Fans (110 CFM), Bottom, Casters, Levelers N/A Preconfigured Cabinet 1 No 19 47 89.65 24 39.5 1760 lbs. Static Load No (Black Only) No No No No No Pre-Configured AV Cabinet - 47U, 19" EIA, 1000mm Deep Ships fully assembled. Frame with 12-24 Tapped Rails, Window Door on Front, Solid Door on Rear, Side Panels, Top with 4 Fans (110 CFM), Bottom, Casters, Levelers
AVC-FANKIT
462554
AV Cabinet Replacement Fan N/A Panel Top No Fan Textured Powder Paint No No (Black Only) No No No No No
AVC-SH1000D
462564
Fixed Shelf - 1U, 19" EIA, 29.50" [750mm] Deep, Vented, Side Mount Fits 39.50" [1000mm] Deep AV Cabinets Only N/A Shelf Internal Yes Vented Textured Powder Paint 19 1 No No (Black Only) No No No No No
