2 post open frame rack

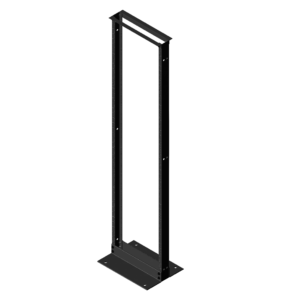

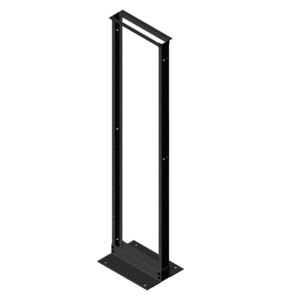

2-Post Open Frame Racks

Designed for use in communication data centers and telecommunication rooms, 2-Post Open Frame Racks satisfy basic functional requirements for structuring cable. Available in 19” or 23” EIA widths, 2-Post Open Frame Racks can be used individually or ganged with other 2-Post Open Frame Racks. A variety of shelves and vertical cable managers are available to complete the setup. 2-Post Open Frame Racks ship flat. Assembly required.

Need a 2-Post Open Frame Rack Fast?

We stock the 7′ size. Call us and we can get your order processed immediately – 507-287-3535.

Need Something More Robust?

Combine the mounting security of a cabinet with the accessibility of a rack. Upgrade to ta 4-Post Open Frame Rack.

Features

2 Post Open Frame Rack Features

  • Threaded #12-24 mounting holes front and rear, with numbered spaces
  • Channels constructed from heavy duty aluminum extrusion
  • 15” wide heavy duty base includes holes for securing to floor
  • Ships flat to save space
  • Available in six heights and two widths
  • 50 pack of black, 5/8” long, #12-24 rack screws included
  • UL listed

Rack Paint / Finish

  • Color: Black
  • Our products are finished in textured powder paint. Powder coating provides a durable high-quality finish.

2 Post Rack Load Rating

  • 800 lbs. [363 kg.]

Industry Standards

  • EIA 310-D
  • RoHS compliant
  • UL listed

How to Order

  • Choose from a variety of  sizes – some of which are in stock.
  • Request a Quote

Sizes Available

2-Post Open Frame Racks – UL Listed

Includes: Rack with 12-24 Tapped Rails, Extra Black Rack Screws (50 pk), Assembly Instructions. Ships flat. Assembly Required.

19″ EIA Part Number 24″ EIA Part Number Rack Units
RR1903-BK* RR2303-BK* 18U [3 ft.]
RR1904-BK* RR2304-BK* 24U [4 ft.]
RR1906-BK* RR2306-BK* 38U [6 ft.]
RR1907-BK RR2307-BK 45U [7 ft.]
RR1908-BK* RR2308-BK* 52U [8 ft.]
RR1909-BK* RR2309-BK* 58U [9 ft.]

*Minimum order quantity required.

Media Center

2-Post Open Frame Rack Sell Sheet
4-Post Open Frame Rack Sell Sheet
Open Frame Rack Accessories Sell Sheet

Product Type

Style

Preconfigured

Used Where

Requires Rear Attach Point

Material

Finish

Details

Sold As

Fits Rail to Rail Setting

U

Side Flange Style

Usable Space Front

Usable Space Rear

Usable Space Top

Usable Space Bottom

Usable Space Slope

Door Structure

Fits Frame Depth

Fits Frame Height

Max Usable Space Width

Max Usable Space Depth

Adds to Overall Height

Adds to Overall Width

Adds to Overall Depth

Fasteners Required

Overall Height

Overall Width

Overall Depth

Weight Load Capacity

Wedge Degree

CFM

dBA

Volts

kW

Amps

Phase

Recepticals

Plug Type

Cord Length

Airflow Direction

Locking

Hinge Side

Number of Monitors

Range of Motion

Mounting Hardware Included

Requires Laminate

Laminate

Paint Color

Shipping Weight

UL Listed

RoHS Compliant

REACH Compliant

EIA Standard

MIL Standard

Meets Attenuation Levels

Seismic Compliance

2-Post Open Frame Racks Compatible Parts

Select Part Number Description Files Read More
CMA-001-C
459281		 Velcro Cable Ties (20 pk) Cable Manager Accessory Style C [Universal] STP

Files: STP

Product Type Cable Managers

Used Where Internal

Requires Rear Attach Point No

Style Accessory

Material Velcro

Fits Frame Depth Any

Mounting Hardware Included Included - If not installed prior to shipment.

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant Yes

REACH Compliant Yes

HCMC1901-BK
464062		 1U Single Sided Horizontal Cable Manager - 19” EIA UL Listed | Includes: Metal Rings and Snap-On Hinging Cover N/A

Files: N/A

Product Type Cable Managers

Used Where Front, Rear

Requires Rear Attach Point Yes

Style Horizontal Single Sided

EIA Width 19

U 1

Fits Frame Depth Any

Mounting Hardware Included Not Included

Requires Paint No (Black Only)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

HCMC1901D-BK
464063		 1U Double Sided Horizontal Cable Manager - 19” EIA UL Listed | Includes: Metal Rings and Snap-On Hinging Cover N/A

Files: N/A

Product Type Cable Managers

Used Where Front, Rear

Requires Rear Attach Point Yes

Style Horizontal Double Sided

EIA Width 19

U 1

Fits Frame Depth Any

Mounting Hardware Included Not Included

Requires Paint No (Black Only)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

HCMC1902-BK
464064		 2U Single Sided Horizontal Cable Manager - 19” EIA UL Listed | Includes: Metal Rings and Snap-On Hinging Cover N/A

Files: N/A

Product Type Cable Managers

Used Where Front, Rear

Requires Rear Attach Point Yes

Style Horizontal Single Sided

EIA Width 19

U 2

Fits Frame Depth Any

Mounting Hardware Included Not Included

Requires Paint No (Black Only)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

HCMC1902D-BK
464065		 2U Double Sided Horizontal Cable Manager - 19” EIA UL Listed | Includes: Metal Rings and Snap-On Hinging Cover N/A

Files: N/A

Product Type Cable Managers

Used Where Front, Rear

Requires Rear Attach Point Yes

Style Horizontal Double Sided

EIA Width 19

U 2

Fits Frame Depth Any

Mounting Hardware Included Not Included

Requires Paint No (Black Only)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

HW-RSL100-PURPLE
461333		 Rackstud - Mounting Hardware Purple Color for 12 Gauge Square Rails (100 pk) N/A

Files: N/A

Product Type Hardware

Requires Rear Attach Point No

Style Hardware Kit

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

HW-RSL100-RED
461332		 Rackstud - Mounting Hardware Red Color for 14 Gauge Square Rails (100 pk) N/A

Files: N/A

Product Type Hardware

Requires Rear Attach Point No

Style Hardware Kit

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

RR1903-BK
463008		 2-Post Open Frame Rack (3') - 18U, 19" EIA HxWxD = [36.00" x 20.25" x 15.00"] [914mm x 514mm x 381mm] Weight Capacity = [800 lbs.] [363 kg.] UL Listed | Ships Flat, Assembly Required Includes: Rack with 12-24 Tapped Rails, Extra Black Rack Screws (25 pk), Assembly Instructions N/A

Files: N/A

Product Type Open Frame Racks

Requires Rear Attach Point No

Style 2-Post Rack with Tapped Rails

Material Aluminum Extrusion

Finish Textured Powder Paint

EIA Width 19

U 18

Front Flange Style 12-24 Tapped

Side Flange Style No Flange

Overall Height 36.000"

Overall Width 20.250"

Overall Depth 15.000"

Weight Load Capacity 800 lbs. Static Load

Requires Paint No (Black Only)

Requires Laminate No

UL Listed Yes

RoHS Compliant Yes

REACH Compliant No

EIA Standard EIA-310-D

RR1904-BK
463009		 2-Post Open Frame Rack (4') - 24U, 19" EIA HxWxD = [48.00" x 20.25" x 15.00"] [1219mm x 514mm x 381mm] Weight Capacity = [800 lbs.] [363 kg.] UL Listed | Ships Flat, Assembly Required Includes: Rack with 12-24 Tapped Rails, Extra Black Rack Screws (25 pk), Assembly Instructions N/A

Files: N/A

Product Type Open Frame Racks

Requires Rear Attach Point No

Style 2-Post Rack with Tapped Rails

Material Aluminum Extrusion

Finish Textured Powder Paint

EIA Width 19

U 24

Front Flange Style 12-24 Tapped

Side Flange Style No Flange

Overall Height 48.000"

Overall Width 20.250"

Overall Depth 15.000"

Weight Load Capacity 800 lbs. Static Load

Requires Paint No (Black Only)

Requires Laminate No

UL Listed Yes

RoHS Compliant Yes

REACH Compliant No

EIA Standard EIA-310-D

RR1906-BK
464070		 2-Post Open Frame Rack (6') - 38U, 19" EIA HxWxD = [72.00" x 20.25" x 15.00"] [1829mm x 514mm x 381mm] Weight Capacity = [800 lbs.] [363 kg.] UL Listed | Ships Flat, Assembly Required Includes: Rack with 12-24 Tapped Rails, Extra Black Rack Screws (25 pk), Assembly Instructions N/A

Files: N/A

Product Type Open Frame Racks

Requires Rear Attach Point No

Style 2-Post Rack with Tapped Rails

Material Aluminum Extrusion

Finish Textured Powder Paint

EIA Width 19

U 38

Front Flange Style 12-24 Tapped

Side Flange Style No Flange

Overall Height 72.000"

Overall Width 20.250"

Overall Depth 15.000"

Weight Load Capacity 800 lbs. Static Load

Requires Paint No (Black Only)

Requires Laminate No

UL Listed Yes

RoHS Compliant Yes

REACH Compliant No

EIA Standard EIA-310-D
