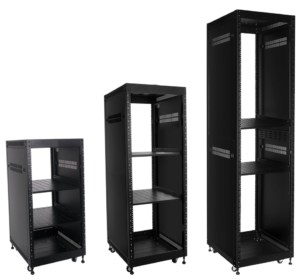

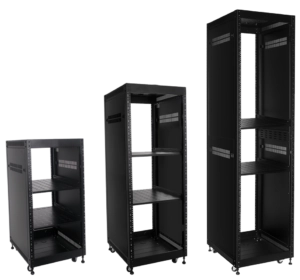

3 black audio-visual racks

Security/AV Racks

Emcor’s purpose-built security/AV server cabinets meet the specific requirements of IP, analog, and hybrid security systems by providing durable physical layer to protect sensitive electronics inside.

Knock outs in the top and bottom allow for cable ingress/egress. Cooling vents and fans ensure equipment stays at the ideal temperature. Lockable doors and side panels keep equipment safe and secure. Quick-release side panels allow full access to components and wiring.

These security A/V cabinets come with one vented shelf, as well as swivel casters and leveling legs to allow for mobility and stable positioning once in place.

Need a Security/AV Rack Fast?

We selected the most common sizes and paired them with the most common accessories. We call them “Pre-Configured” cabinets. Call us and we can process your order immediately – 507-287-3535.

Need a Custom Security/AV Cabinet?

We offer design services and solutions to meet the needs of any product specification. You can count on our expert resources and engineering capabilities to support any stage of your project, from concept to production. Contact us with your requirement today.

Features

Features

  • Sturdy construction capable of holding up to 1000 lbs. [450 kg.]
  • Tapped 12-24 rails allow for rack mounted gear
  • Includes one vented shelf
  • Quick-release, removable sides provide easy access to wiring
  • Cooling vents throughout the rack allow for enhanced air circulation
  • Swivel casters allow simple portability, leveling legs provide stability
  • Ships flat. Assembly required. Includes all hardware and instructions

Paint / Finish

  • Our products are finished in black textured powder paint. Powder coating provides a durable high-quality finish.

Load Rating

  • Static Load Rating: 1000 lbs. [450 kg.]
  • A cabinet has a static load when:
    • It is in its final, permanent, fully secured location, and
    • Its load is uniformly applied to the two sets of rack-mounting rails
  • Never move a cabinet with its maximum static load applied

Industry Standards

  • EIA 310-D

Pre-Configured

It’s about saving time without compromise —

We have selected the most common sizes and paired them with the most common accessories to provide the ultimate solution – FAST!

Security A/V Racks

Ships Flat, Assembly Required. Includes: Frame with 12-24 Tapped Rails, Vented Side Panels, Vented Shelf, Vented Top, Bottom, Casters, Levelers, Assembly Instructions.

Part Number Rack Units
AVR-9U2020 9U
AVR-12U2020 19U
AVR-18U2020 18U
AVR-27U2020 27U
AVR-42U2020 42U

When wall mounted, the weight capacity varies and is dependent on secure mounting into proper structure.

Product Type

Style

Preconfigured

Used Where

Requires Rear Attach Point

Material

Finish

Details

Sold As

Fits Rail to Rail Setting

U

Side Flange Style

Usable Space Front

Usable Space Rear

Usable Space Top

Usable Space Bottom

Usable Space Slope

Door Structure

Fits Frame Depth

Fits Frame Height

Max Usable Space Width

Max Usable Space Depth

Adds to Overall Height

Adds to Overall Width

Adds to Overall Depth

Fasteners Required

Overall Height

Overall Width

Overall Depth

Weight Load Capacity

Wedge Degree

CFM

dBA

Volts

kW

Amps

Phase

Recepticals

Plug Type

Cord Length

Airflow Direction

Locking

Hinge Side

Number of Monitors

Range of Motion

Mounting Hardware Included

Requires Laminate

Laminate

Paint Color

Shipping Weight

UL Listed

RoHS Compliant

REACH Compliant

EIA Standard

MIL Standard

Meets Attenuation Levels

Seismic Compliance

Security/AV Racks Compatible Parts

Select Part Number Description Files Read More
AVR-12U2020
462082
AV Rack - 12U, 19" EIA HxWxD = [29.25" x 20.00" x 20.00"] [743mm x 500mm x 500mm] Weight Capacity = [1000 lbs.] [450 kg.] Ships Flat, Assembly Required Includes: Frame with 12-24 Tapped Rails, Vented Side Panels, Vented Shelf, Vented Top, Bottom, Casters, Levelers, Assembly Instructions N/A

Files: N/A

Product Type Preconfigured Cabinet

Preconfigured 1

Requires Rear Attach Point No

EIA Width 19

U 12

Overall Height 29.25

Overall Width 20

Overall Depth 20

Weight Load Capacity 1000 lbs. Static Load

Requires Paint No (Black Only)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

Website Description Pre-Configured AV Rack - 12U, 19" EIA, 500mm Deep

Ships Ships flat. Assembly required.

Contents Frame with 12-24 Tapped Rails, Vented Side Panels, Vented Shelf, Vented Top, Bottom, Casters, Levelers, Assembly Instructions

AVR-18U2020
462083
AV Rack - 18U, 19" EIA HxWxD = [40.00" x 20.00" x 20.00"] [1009mm x 500mm x 500mm] Weight Capacity = [1000 lbs.] [450 kg.] Ships Flat, Assembly Required Includes: Frame with 12-24 Tapped Rails, Vented Side Panels, Vented Shelf, Vented Top, Bottom, Casters, Levelers, Assembly Instructions N/A

Files: N/A

Product Type Preconfigured Cabinet

Preconfigured 1

Requires Rear Attach Point No

EIA Width 19

U 18

Overall Height 40

Overall Width 20

Overall Depth 20

Weight Load Capacity 1000 lbs. Static Load

Requires Paint No (Black Only)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

Website Description Pre-Configured AV Rack - 18U, 19" EIA, 500mm Deep

Ships Ships flat. Assembly required.

Contents Frame with 12-24 Tapped Rails, Vented Side Panels, Vented Shelf, Vented Top, Bottom, Casters, Levelers, Assembly Instructions

AVR-27U2020
462084
AV Rack - 27U, 19" EIA HxWxD = [55.50" x 20.00" x 20.00"] [1409mm x 500mm x 500mm] Weight Capacity = [1000 lbs.] [450 kg.] Ships Flat, Assembly Required Includes: Frame with 12-24 Tapped Rails, Vented Side Panels, Vented Shelf, Vented Top, Bottom, Casters, Levelers, Assembly Instructions N/A

Files: N/A

Product Type Preconfigured Cabinet

Preconfigured 1

Requires Rear Attach Point No

EIA Width 19

U 27

Overall Height 55.5

Overall Width 20

Overall Depth 20

Weight Load Capacity 1000 lbs. Static Load

Requires Paint No (Black Only)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

Website Description Pre-Configured AV Rack - 27U, 19" EIA, 500mm Deep

Ships Ships flat. Assembly required.

Contents Frame with 12-24 Tapped Rails, Vented Side Panels, Vented Shelf, Vented Top, Bottom, Casters, Levelers, Assembly Instructions

AVR-42U2020
462085
AV Rack - 42U, 19" EIA HxWxD = [82.00" x 20.00" x 20.00"] [2075mm x 500mm x 500mm] Weight Capacity = [1000 lbs.] [450 kg.] Ships Flat, Assembly Required Includes: Frame with 12-24 Tapped Rails, Vented Side Panels, Vented Shelf, Vented Top, Bottom, Casters, Levelers, Assembly Instructions N/A

Files: N/A

Product Type Preconfigured Cabinet

Preconfigured 1

Requires Rear Attach Point No

EIA Width 19

U 42

Overall Height 82

Overall Width 20

Overall Depth 20

Weight Load Capacity 1000 lbs. Static Load

Requires Paint No (Black Only)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

Website Description Pre-Configured AV Rack - 42U, 19" EIA, 500mm Deep

Ships Ships flat. Assembly required.

Contents Frame with 12-24 Tapped Rails, Vented Side Panels, Vented Shelf, Vented Top, Bottom, Casters, Levelers, Assembly Instructions

AVR-9U2020
462081
AV Rack - 9U, 19" EIA HxWxD = [24.00" x 20.00" x 20.00"] [610mm x 500mm x 500mm] Weight Capacity = [1000 lbs.] [450 kg.] Ships Flat, Assembly Required Includes: Frame with 12-24 Tapped Rails, Vented Side Panels, Vented Shelf, Vented Top, Bottom, Casters, Levelers, Assembly Instructions N/A

Files: N/A

Product Type Preconfigured Cabinet

Preconfigured 1

Requires Rear Attach Point No

EIA Width 19

U 9

Overall Height 24

Overall Width 20

Overall Depth 20

Weight Load Capacity 1000 lbs. Static Load

Requires Paint No (Black Only)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

Website Description Pre-Configured AV Rack - 9U, 19" EIA, 500mm Deep

Ships Ships flat. Assembly required.

Contents Frame with 12-24 Tapped Rails, Vented Side Panels, Vented Shelf, Vented Top, Bottom, Casters, Levelers, Assembly Instructions

AVR-SH500
462560
Fixed Shelf - 1U, 19" EIA, 17.63" [450mm], Vented, Side Mount Fits 20.00" [500mm] Deep AV Racks Only N/A

Files: N/A

Product Type Shelves

Used Where Internal

Requires Rear Attach Point Yes

Style Vented

Finish Textured Powder Paint

EIA Width 19

U 1

Mounting Hardware Included Not Included

Requires Paint No (Black Only)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

CMA-001-C
459281
Velcro Cable Ties (20 pk) Cable Manager Accessory Style C [Universal] STP

Files: STP

Product Type Cable Managers

Used Where Internal

Requires Rear Attach Point No

Style Accessory

Material Velcro

Fits Frame Depth Any

Mounting Hardware Included Included - If not installed prior to shipment.

Requires Paint No (Not Painted)

Requires Laminate No

UL Listed No

RoHS Compliant Yes

REACH Compliant Yes

DC-1U-PPN-P
462551
Snap In Plastic Blanking Panels - 1U, 19" EIA Fits Square Hole Rails Only Used with PROTECTOR Server Cabinets Only N/A

Files: N/A

Product Type Panels

Used Where Front, Rear

Requires Rear Attach Point No

Style Solid

Material Plastic

EIA Width 19

U 1

Mounting Hardware Included Not Included

Requires Paint No (Black Only)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

DC-1U-XPN-P
462549
Steel Blanking Panels - 1U, 19" EIA Used with PROTECTOR Server Cabinets Only N/A

Files: N/A

Product Type Panels

Used Where Front, Rear

Requires Rear Attach Point No

Style Solid

Finish Textured Powder Paint

EIA Width 19

U 1

Mounting Hardware Included Not Included

Requires Paint No (Black Only)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

DC-2U-DWR-P
462566
Locking Drawer - 2U, 19" EIA, Front Mount 13.50" [343mm] Deep, Extends 11.77" [299mm] Use with PROTECTOR Server Cabinets Only N/A

Files: N/A

Product Type Drawers

Used Where Internal

Requires Rear Attach Point Yes

Style Open

Finish Textured Powder Paint

EIA Width 19

U 2

Max Usable Space Depth 13.320" (Max)

Locking Locking

Mounting Hardware Included Not Included

Requires Paint No (Black Only)

Requires Laminate No

UL Listed No

RoHS Compliant No

REACH Compliant No

EIA Standard EIA-310-D
